4-120 Mesh Quartz Sand Processing with High Pure Sand Making Machine Production Line

Ask Lasest Price
Brand Name :	GUOTE
Certification :	CE , ISO9001:2008
Supply Ability :	280000 Set/Sets per Year
Price :	$28,320.00/sets >=1 sets

Add to Cart

Product Details
Company Profile

4-120 Mesh Quartz Sand Processing with High Pure Sand Making Machine Production Line

4-120 mesh quartz sand silica sand processing higher capacity GZS series high pure sand making machine production line

Product Description

This product is the new quartz slab sand production line developped by our company through several years’ practices.

It can make directly materials with 300mm to qualified products with 4-120 mesh. The advantages are as follows: First,Reduce process flow;Second ,Decrease the consume of the equipment ;Third ,Improve the purity of the materials and Optimize design ;Fourth,Produce the various size of substances according to customer’s requirements.

Frist ,Features of GZS series quartz slab sand special production line:

1,The sand production rate is high the scientific output structure rate of finished products up to 95%.
2, It’s international standard production line. And we can design and produce it according to customer’s detailed requirements. The whole production line works steady and reliable.
3, It can be operated easily. And it can be designed as PLC automatically controlling, from grind to classifier to pack, the whole process is automatically controlled to reduce labor to save cost
4, The vanes of classify impeller are made of macromolecule wear resistant material which solves the hard problem of abrasion of classify impeller.
5, The whole production process was going on with advanced wear resistant defending. The inner layer of ball mill can be made of ceramic or quartz. And choose ceramic ball or quartz ball as grind medium. The whole classify system takes potsherd defending so that the whole production don’t touch metal to guarantee the product’s purity and prolong the equipments’ service time.

Second ,Process flow of GZS series quartz slab sand special production line

4-120 Mesh Quartz Sand Processing with High Pure Sand Making Machine Production Line

Materials with less than 300mm entered the feeding inlet via the feeder. Then they will enter the grinding sieve from feeding outlet; Coarse substances after screening will return into grinding machine.
And reasonable product are taken into sizing screen via lifting machine, they will be screened to various size of product. All the milling processing is equipped with dust collector. No pollution all the processing.

Third, Technical parameter of GZS series quartz slab sand special production line

MODEL	CYLINDER DIAMETER (MM)	CYLINDER LENGTH(MM)	MAIN ENGINE POWER(KW)	TOTAL POWER (KW)	ROTATIONAL SPEED	FEEDING SIZE (MM)	PRODUCT SIZE (MESH)	CAPACITY(T/H)
GZS1725	Φ1700	2500	30	40	Fixed or speed control	≤ 300	4-200	0.5-1.0
GZS1925	Φ1900	2500	45	55	Fixed or speed control	≤ 300	4-200	1.0-2.0
GZS1930	Φ1900	3000	45	55	Fixed or speed control	≤ 300	4-200	1.5-2.0
GZS2125	Φ2100	2500	55	70	Fixed or speed control	≤ 300	4-200	1.5-2.5
GZS2130	Φ2100	3000	55	70	Fixed or speed control	≤ 300	4-200	2-4
GZS2445	Φ2400	3500	75	90	Fixed or speed control	≤ 350	4-200	4-6
GZS2640	Φ2600	4000	90	120	Fixed or speed control	≤ 350	4-200	5-10

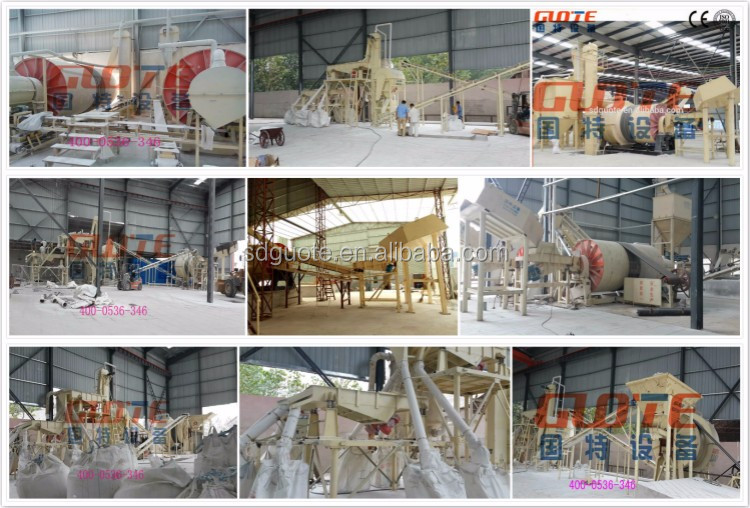

Fourth, Equipment scene photos of GZS series quartz slab sand special production line

CONTACT

Contact Information-

Annie Chang

Mob: +86 18678029069

(WhatsApp/wechat)

Skype:anna1983cyj ,QQ:896247401
Email:annieflower.chang at sdguote.com
website: https://sdguote.cnen.alibaba.com/
If you have any questions, pls don't hesitated to contacting me anytime.

4-120 Mesh Quartz Sand Processing with High Pure Sand Making Machine Production Line

OEM Service

OEM Service

We could make whole production line or single equipment following different clients requirements.

For whole process as below:

Firstly Please offer detailed technical drawing in CAD including whole detailed requirements.
Secondly we will offer different technical proposals follwing offered drawings with requirements for clients.
Thridly make decision for which proposal and confirm it.
At last manufacture whole equipments following techncial proposal and holding test in warehouse.
Finally finished equipment/prodcution line and offered service as turn-key-project.

For details, please contact me:

Annie Chang

Mob:0086-18678029069(whatsapp)

E-mail: Annieflower.chang dot sdguote.com

COMPANY INFORMATION

4-120 Mesh Quartz Sand Processing with High Pure Sand Making Machine Production Line

Weifang GUOTE Mine Equipment co.ltd. is professional and modern enterprise including research and development, engineering design, production and installation, debugging services , automatic control equipment, non-metallic mineral production line test, design, consultation and the complete line of delivery.The scope of services related to mining, metallurgy, electric power, coal, glass, paper, chemical building materials, refractory materials, tiles,food, cement ,etc.Our product sell well in more than thirty provinces, autonomous region.(For details, please contact me:Annie Chang,Mob:0086-18678029069(wechat/whatsapp),E-mail: Annieflower.chang dot sdguote.com) 4-120 Mesh Quartz Sand Processing with High Pure Sand Making Machine Production Line

Our product have electromagnetic, permanent magnetic separator, dry wet magnetic separator,electromagnetic vibration feeder, quartz sand making machine, air classifier, dust collector, water separator, washing machine, flotation machine,metal detector, screw conveyor, timing quantitative feeding,weigher and centralized control system, etc.
Facing the new opportunities and challenges, the company in line with the spirit of "honesty-oriented, mutual benefit, cooperation and innovation" , dedicated to providing “dependable,simple and efficient” products and services to customers, make enterprises become domestic advanced mining equipment manufacturer.
Our company is willing to work together with people from all walks of life for a better future.

4-120 Mesh Quartz Sand Processing with High Pure Sand Making Machine Production Line
