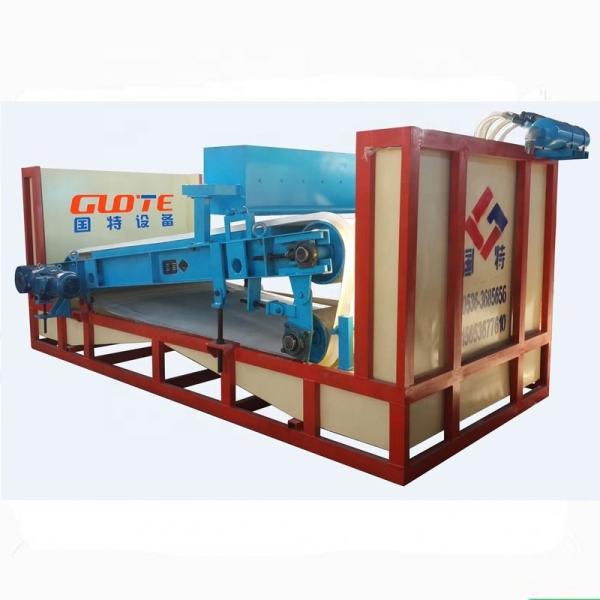

    Energy Mining Wet High Gradient Magnetic Separator for Concentrating Iron Ore

    4,500-15,000GS Wet Type Permanent Magnetic Separator
    Energy Mining Wet High Gradient Magnetic Separator for Concentrating Iron Ore
    Products Description
    GTGB series permanent high strength magnetic flat type magnetic separator is our latest research and development of high gradient and high intensity magnetic separator equipment.

    It is mainly used to 1.2 mm fine non-metallic minerals, such as quartz, feldspar and nepheline. Kaolin iron impurities removing purification, can also be used in red iron ore (hematite, limonite and siderite, etc.), manganese ore, ilmenite, wolframite variety of weak magnetic ore wet separation and black and white tungsten separation, black tungsten and tin separation.
    Energy Mining Wet High Gradient Magnetic Separator for Concentrating Iron Ore
    Details Images
    Energy Mining Wet High Gradient Magnetic Separator for Concentrating Iron Ore
    Product Paramenters
    Model
    Capacity
    (t/h)
    Magnetic field Intensity
    Concentration of the Slurry
    Belt Speed
    Power
    (kw)
    Machine Size
    GTGB815
    8-10
    15,000GS

    10-30%
    2-8
    (r/min)
    1.1
    2500X1500X1400
    GTGB1020
    10-15
    1.5
    3000X1600X1400
    GTGB1520
    15-20
    2.2
    3000X2000X1500
    GTGB2025
    20-25
    3
    4200X2600X1700
    GTGB2030
    25-30
    4
    4600X2600X1700
    GTGB2030
    30-35
    4
    4900X2600X1900
    Energy Mining Wet High Gradient Magnetic Separator for Concentrating Iron Ore
    Working principle
    The slurry enters the distribution device of the magnetic separator through the feeding pipe, and after fully dispersed, it is evenly sprinkled on the belt of iron removing which on the upper part of the magnetic plate.
    Under the action of gravity, the slurry flows downward along the inclined direction of the magnetic plate. The ferromagnetic material contained in the slurry is firmly adsorbed on the iron-removing belt under the strong magnetic field provided by the magnetic plate,the motor drive the belt to move upward along the direction of the magnetic plate, and at the same time, the adsorbed ferromagnetic material is brought into the iron removing area. Washed by the flushing water and get into the tailing hopper for concentrated collection and the non-magnetic slurry continues to flow down the magnetic plate, and the inflow into the concentrate bucket for collection.
    Working principle
    belt to move upward along the direction of the magnetic plate, and at the same time, the adsorbed ferromagnetic material is brought into the iron removing area. Washed by the flushing water and get into the tailing hopper for concentrated collection and the non-magnetic slurry continues to flow down the magnetic plate, and the inflow into the concentrate bucket for collection.
    Manufacturing Technique
    Energy Mining Wet High Gradient Magnetic Separator for Concentrating Iron Ore
    Outstanding Advantages
    1.Selection of high performance NdFeB magnetic materials , the magnetic circuit design is unique, the magnetic filed intensity , the surface magnetic field strength can reach15000Gs.
    2.Compared to the other permanent separation of the magnetic field , Large scavenging area of magnetic field , the magnetic separation effect is better.
    3.Variable frequency adjustable belt speed , Power saving and energy conservation

    4. Automatic cleaning of adsorbed magnetic materials

    5.Compared to other high gradient magnetic separator energy saving,power saving
    Energy Mining Wet High Gradient Magnetic Separator for Concentrating Iron Ore
    Site Picture 1
    Energy Mining Wet High Gradient Magnetic Separator for Concentrating Iron Ore
    Site Picture 2
    Recommend Products
    Energy Mining Wet High Gradient Magnetic Separator for Concentrating Iron Ore

    GTLH vertical ring Magnetic Separato

    1.0T 1.3T 1.5T Wet Process Electromagnetic Type
    Energy Mining Wet High Gradient Magnetic Separator for Concentrating Iron Ore

    GTGB Plate Magnetic Separator

    4,500GS-15,000GS Wet Process Permanent
    Energy Mining Wet High Gradient Magnetic Separator for Concentrating Iron Ore

    CTB/N/S Drum Magnetic Separator

    1,000-6,500GS Wet Process Permanent Magnetic Type
    Energy Mining Wet High Gradient Magnetic Separator for Concentrating Iron Ore

    GDF Magnetic Separator

    10,000-20,000GS Dry Powder Electromagnetic Type
    Energy Mining Wet High Gradient Magnetic Separator for Concentrating Iron Ore

    GCT/F Roller Magnetic Separator

    15,000GS Dry Permanent Multi Rollers Type
    Energy Mining Wet High Gradient Magnetic Separator for Concentrating Iron Ore

    GTZ Drum Magnetic Pulley

    1,000-7,000GS Dry Permanent Drum Magnetic Pulley
    Energy Mining Wet High Gradient Magnetic Separator for Concentrating Iron Ore
    Company Profile
    Energy Mining Wet High Gradient Magnetic Separator for Concentrating Iron Ore
    Basic Company Introduction
    Weifang guote mining equipment Co.,Ltd. is located in Qingzhou Economic Development Zone, Weifang City, Shandong Province. It covers an area of 40000 square meters. It is a high-tech enterprise in Shandong Province. The company has passed ISO9001 quality system certification, environmental system certification, safety management system certification, EU CE certification and more than ten useful national invention patents.
    Energy Mining Wet High Gradient Magnetic Separator for Concentrating Iron Ore
    About GUOTE
    Guote Mining equipment has long been committed to the production of quartz sand, silicon powder, feldspar and oil field fracturing
    sand special equipment, and provide non-metallic ore production line experiment, design, consulting and the whole line equipment supply;such as:quartz sand making processing line equipment;glass sand making processing line equipment ;quartz powder making machine;sand washing system;drum dryer machine;dewatering screen equipment;vibration screen;scrubber attrition machine;magnetic separator machine...etc...

    Energy Mining Wet High Gradient Magnetic Separator for Concentrating Iron Ore
    Energy Mining Wet High Gradient Magnetic Separator for Concentrating Iron Ore
    Energy Mining Wet High Gradient Magnetic Separator for Concentrating Iron Ore
    Energy Mining Wet High Gradient Magnetic Separator for Concentrating Iron Ore
    Energy Mining Wet High Gradient Magnetic Separator for Concentrating Iron Ore
    Certifications
    Energy Mining Wet High Gradient Magnetic Separator for Concentrating Iron Ore
    Energy Mining Wet High Gradient Magnetic Separator for Concentrating Iron Ore
    Energy Mining Wet High Gradient Magnetic Separator for Concentrating Iron Ore
    Customer Photos
    Energy Mining Wet High Gradient Magnetic Separator for Concentrating Iron Ore

    About customers:

    Our products are very popular at home and abroad, exported to Japan, South Korea,Thailand, Pakistan, Bangladesh, South Africa, India, Indonesia, Brazil, Vietnam, Malaysia and more than a dozen other countries and regions.
