5-20t/h Capacity Electromagnetic Separator for Tantalum and Niobium Ore Iron Removal

Weifang Guote Mining Equipment Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap 5-20t/h Capacity Electromagnetic Separator for Tantalum and Niobium Ore Iron Removal from wholesalers

    Buy cheap 5-20t/h Capacity Electromagnetic Separator for Tantalum and Niobium Ore Iron Removal from wholesalers
    • Buy cheap 5-20t/h Capacity Electromagnetic Separator for Tantalum and Niobium Ore Iron Removal from wholesalers
    • Buy cheap 5-20t/h Capacity Electromagnetic Separator for Tantalum and Niobium Ore Iron Removal from wholesalers
    • Buy cheap 5-20t/h Capacity Electromagnetic Separator for Tantalum and Niobium Ore Iron Removal from wholesalers
    • Buy cheap 5-20t/h Capacity Electromagnetic Separator for Tantalum and Niobium Ore Iron Removal from wholesalers
    • Buy cheap 5-20t/h Capacity Electromagnetic Separator for Tantalum and Niobium Ore Iron Removal from wholesalers
    • Buy cheap 5-20t/h Capacity Electromagnetic Separator for Tantalum and Niobium Ore Iron Removal from wholesalers

    5-20t/h Capacity Electromagnetic Separator for Tantalum and Niobium Ore Iron Removal

    Ask Lasest Price
    Brand Name : GUOTE, Guote
    Price : $8,000.00/sets >=1 sets
    Certification : ISO9001
    Supply Ability : 100 Set/Sets per Month magnetic separation
    • Product Details
    • Company Profile

    5-20t/h Capacity Electromagnetic Separator for Tantalum and Niobium Ore Iron Removal

    dChina supplier electromagnetic separator used for tantalum and niobium ore iron removal

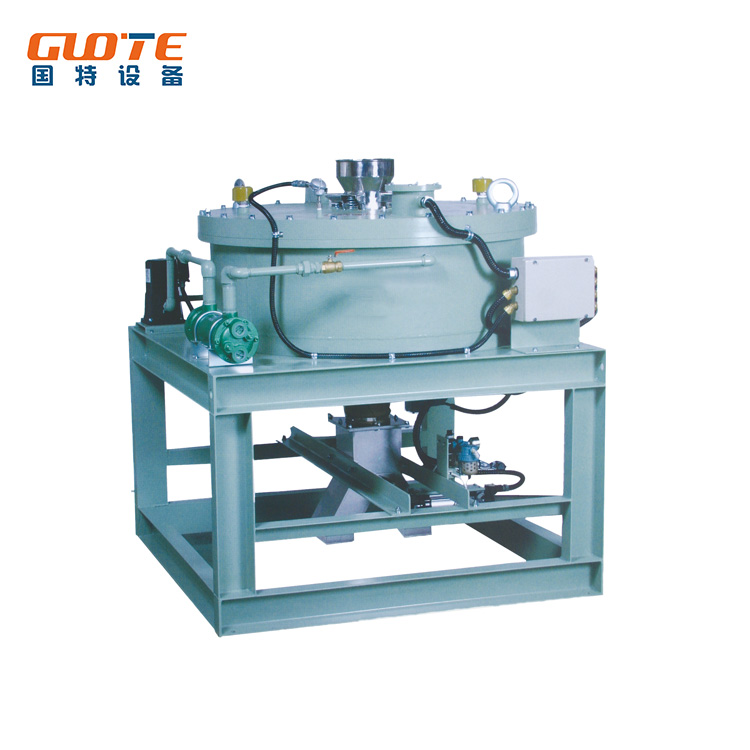

    Product Show

    5-20t/h Capacity Electromagnetic Separator for Tantalum and Niobium Ore Iron Removal

    5-20t/h Capacity Electromagnetic Separator for Tantalum and Niobium Ore Iron Removal

    5-20t/h Capacity Electromagnetic Separator for Tantalum and Niobium Ore Iron Removal

    Product Description

    Product Introduction:

    GDF series electromagnetic dry powder magnetic separator used for Removal of feeble magnetic oxides in non-metallic mineral materials such as ceramics, glass, refractories, etc. It can also be used in pharmaceutical, chemical, food and other industries for material purification.There are two outlet at the bottom of the equipment : iron outlet and materials outlet Each equipment all equipped an electro control cabinet.


    Technical features:

    1.Wipe off fine materials that are not easy to circulate: under the effect of the vibration motor, the material, which is ≥ 200mm or with high humidity, can go throng the screen mesh.

    2.Processing the material with high temperature: the standard model can processing material with up to 70 centigrade and the special model can process the material with higher temperature.

    3. Easy installation: you can install the equipment in any way, as long as the frame is safe and stable.

    4.Cleaning the magnetic filtering net easily: laying a plate at the discharging pole, and at the same time, turn off the power to erase the magnetism for the cleaning operation.
    5. Separating the iron pollution and the material totally: the material definitely has no way to go into the separating chamber.

    6.Simple connection : during operation ,the host vibration . The input and output of raw materials can be connected by external pipes or canvas bags .


    Technical parameter:


    Model

    Standard

    High strength magnetic force
    GDF-150GDF-250GDF-300GDF-150HGDF-250HGDF-300H

    Capacity (T/H)
    5152051520

    Weight (kg)
    20040045080012001400

    Filter Net Outer Diameter (mm)
    145245295145245295

    Filter Net sheet Number
    131515131515

    Insulation Oil Amount (L)
    185050607070

    Control Panel Size (mm)
    300*400*540350*500*600

    Working principle:

    5-20t/h Capacity Electromagnetic Separator for Tantalum and Niobium Ore Iron Removal

    Related Peoducts Links


    5-20t/h Capacity Electromagnetic Separator for Tantalum and Niobium Ore Iron Removal
    permanent magnetic type
    CTB(N/S) wet magnetic separatorGCT/F dry magnetic separatorGCX dry magnetic separator
    5-20t/h Capacity Electromagnetic Separator for Tantalum and Niobium Ore Iron Removal
    electronmagnetic type
    GDF dry electromagnetic separatorGTLH wet electromagnetic separatorGTDZ electromagnetic separator for slurry
    Company Information

    5-20t/h Capacity Electromagnetic Separator for Tantalum and Niobium Ore Iron Removal

    Certification

    5-20t/h Capacity Electromagnetic Separator for Tantalum and Niobium Ore Iron Removal

    International Trade Department

    5-20t/h Capacity Electromagnetic Separator for Tantalum and Niobium Ore Iron Removal

    Our customers :

    5-20t/h Capacity Electromagnetic Separator for Tantalum and Niobium Ore Iron Removal

    Our Services

    1.EPC service for single equipment and whole production line.

    2.OEM service for your personal equipment or production line

    3.Testing before delivery and Pretesting in working site until get qualified products

    4.24hours for technical Operation Guide and 4hours offer technical proposal for problem shooting.


    Packaging & Shipping

    5-20t/h Capacity Electromagnetic Separator for Tantalum and Niobium Ore Iron Removal


    FAQ

    Q: Why we believe in Weifang GuoteMining Equipment Company?
    A: 1. More than 10 years experience.


    Q. We are the leading professional supplier of mining equipments and service for quartz mining equipment industry.
    A. All products achieved ISO9001:2000 quality management certificate and EU CE certificate.


    Q: Delivery time
    A: The lead time is 10-30 days, delivery time will vary depending on the type of the machine, shipping method selected and part availability.


    Q: Payment terms
    A: Accepted Payment Type: T/T, L/C, Western Union, Cash.
    After sign the contract, pay the 30% deposit of total purchase price and pay the full payment before delivery.


    Q: What will you do if the machine is broken down?
    A: The Products warranty is one year. We will provide the technical advice and find the solution immediately for you when the machine is in trouble. For those wear parts, we guarantee the high quality parts for long-term supply.


    Q: What should I do if I want to get a best quotation?
    A: If you want a suitable type for you, please let us know your material and capacity.
