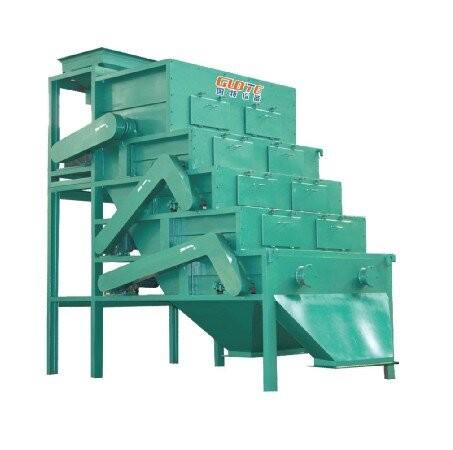

    Multi Stage Roller Magnetic Separator for Removing Ferrous Impurities from Catalysts

    Ask Lasest Price
    Brand Name : Guote
    Supply Ability : 50 Set/Sets per Month
    Price : $15,695.00/sets >=1 sets
    • Product Details
    • Company Profile

    Multi Stage Roller Magnetic Separator for Removing Ferrous Impurities from Catalysts

    Product Description

    magnetic magnet 45 kw motor,magnetic separator for waste sorting plant

    magnetic separator machine of Input size:≤0-1.5 mm
    Dry Type High Intensity Permanent Rare Earth Magnetic Roller Separator Supplier for weakly magnetic mine Silica Powder Industry has Capacity:0.5-10 TPH
    Magnetic strengthof Fine Mining Equipment Powder Dry Rare Earth High Intensity Iron Ore Magnetic Roller Separation Magnetic Separator can reach15000gs

    Usage :magnetic separator nonferrous removes iron impurity for sand
    high intensity magnetic separator is used for iron removal from particles and coarse powder materials, It is used for ceramics, glass, refractories, abrasives and other non-metallic mineral,And It's apply to purification of chemical, food, medicine and purification, hematite, feldspar and manganese.

    Multi Stage Roller Magnetic Separator for Removing Ferrous Impurities from Catalysts

    Multi Stage Roller Magnetic Separator for Removing Ferrous Impurities from Catalysts


    Technical Features

    1.Cylinder and roller reasonablely combined, iron removal more efficient.
    2.Cylinder with new type permanent magnet ,magnetic field more stronger, suction more stronger
    3. Drum magnetic system can be turning block type, efficient more higher
    4. Surface magnet field up to 8000GS
    5.Cylinder and roller's speed is variable frequency regulation
    6.Magnetic roller adopted polymer composite magnetic system,magnetic field up to 20000GS, higher gradient 7. Belt made with special materials, high wear resistance
    8.Controllable feeding system ensure the uniformity of material when it go through magnetic field
    9. Self-clean weakly magnetic oxide,long life work
    10.Dust discharged only by dust collector, so it can meet the environmental protection requirements
    Technical Data

    Model
    Capacity
    (t/h)
    Magnetic field strength of roller(Gs)
    Magnetic field strength of drum(Gs)
    Belt thickness
    (mm)
    Material size(μm)
    Drum driving power(kw)
    GCT/F-3
    0.4-0.6
    15000-20000
    4000-10000
    0.1-2
    83-5000
    0.75*2
    GCT/F-5
    0.8-0.1
    15000-20000
    4000-10000
    0.1-2
    83-5000
    0.75*2
    GCT/F-8
    1.2-2
    15000-20000
    4000-10000
    0.1-2
    83-5000
    1.1*2
    GCT/F-10
    2-3.5
    15000-20000
    4000-10000
    0.1-2
    83-5000
    1.5*2
    GCT/F-12
    4-7
    15000-20000
    4000-10000
    0.1-2
    83-5000
    2.2*2
    GCT/F-15
    7-10
    15000-20000
    4000-10000
    0.1-2
    83-5000
    3*2
