    High Gradient Magnetic Separator For Silica Sand Matched With Grinding Machine Design

    Ask Lasest Price
    Brand Name : Guote
    Price : $10,000.00/sets >=1 sets
    Supply Ability : 100 Set/Sets per Month
    • Product Details
    • Company Profile

    High Gradient Magnetic Separator For Silica Sand Matched With Grinding Machine Design

    High Gradient Magnetic Separator For Silica Sand Matched With Grinding Machine Design
    Products Description
    Feed size:0-1.2mm
    Magnetic strength:0.8T 1.0T 1.2T 1.4T wet type electro magnetic
    Usage:removing weak magnetic iron impurity
    The high intensity magnetic separator with most advanced technology and best performance in the worldwide. Whole equipment have swivel vertical rotation and back flush mineral ores functions, following with high frequency vibration motor. It has higher enrichment ratio and can adapt different particle size and concentration and grade of mineral ores. And also have advantages of reliable working and easy operation and maintenance. The vertical ring high gradient magnetic separator is composed of frame, yoke, rotating ring, ore hopper, flushing device, concentrate hopper, medium box, tailings tank, oil cooling excitation coil, oil cooling system and control system. The core magnetic circuit is designed by computer simulation, with high magnetic field intensity and large gradient.
    High Gradient Magnetic Separator For Silica Sand Matched With Grinding Machine Design

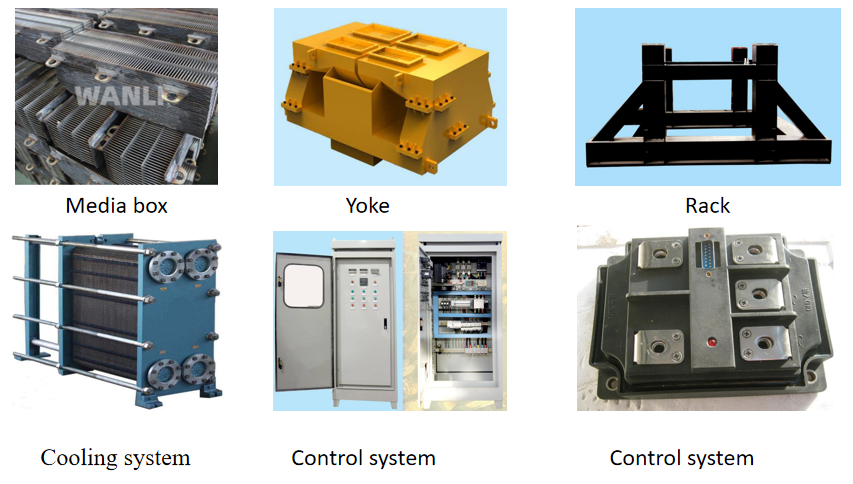

    Details Images
    High Gradient Magnetic Separator For Silica Sand Matched With Grinding Machine Design
    Product Paramenters
    High Gradient Magnetic Separator For Silica Sand Matched With Grinding Machine Design
    Working principle

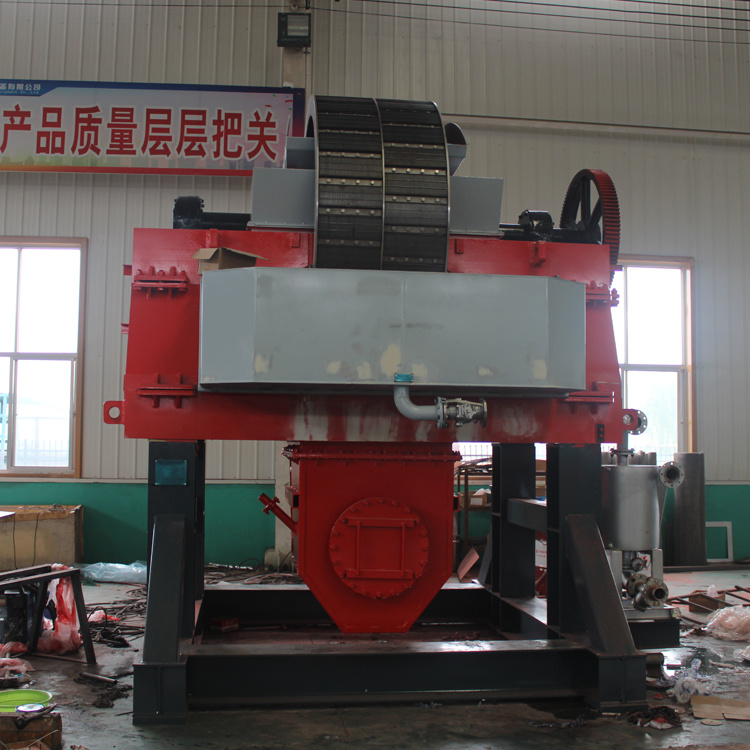

    High Intensity Wet Vertical Ring Magnetic Separator ,Magnetic yoke fixed on the machine frame, which generate the strong magnetic field together with exciting coil. Rotary ring is in the clockwise drived by the rotary device, and goes through the magnetic field slowly. There are many separation boxes on the outer circle of the rotary ring , there is the multi-layer magnetic medium which is made of magnetic material inside the separation box. When the rotary ring goes through the magnetic filed, it would be
    magnetized, and formed the high gradient magnetic field. In the mineral processing, the mine slurry goes into the rotary ring along with the gap of the magnetic pole, and the magnetic particle would be attracted in the magnetic medium surface, revolving to the non-magnetic area. The magnetic particle would be put into the fine tank, and the nonmagnetic material goes into the tailing tank along the lower magnetic yoke gap.
    High Gradient Magnetic Separator For Silica Sand Matched With Grinding Machine Design
    Outstanding Advantages
    1. Vertical rotating ring, high separation efficiency;
    2. Unique magnetic medium, high induction magnetic field;
    3. Good heat dissipation effect, more stable magnetic field;
    4. Wide range of application, complete machine reliable maintenance free;
    5. The coil has a special structure and can operate in severe conditions;
    6. Special cooling method, coil is not easy to block, long service life.
    High Gradient Magnetic Separator For Silica Sand Matched With Grinding Machine Design
    High Gradient Magnetic Separator For Silica Sand Matched With Grinding Machine Design
    High Gradient Magnetic Separator For Silica Sand Matched With Grinding Machine Design
    High Gradient Magnetic Separator For Silica Sand Matched With Grinding Machine Design
    High Gradient Magnetic Separator For Silica Sand Matched With Grinding Machine Design
    Recommend Products
    High Gradient Magnetic Separator For Silica Sand Matched With Grinding Machine Design

    GTLH vertical ring Magnetic Separato

    1.0T 1.3T 1.5T Wet Process Electromagnetic Type
    High Gradient Magnetic Separator For Silica Sand Matched With Grinding Machine Design

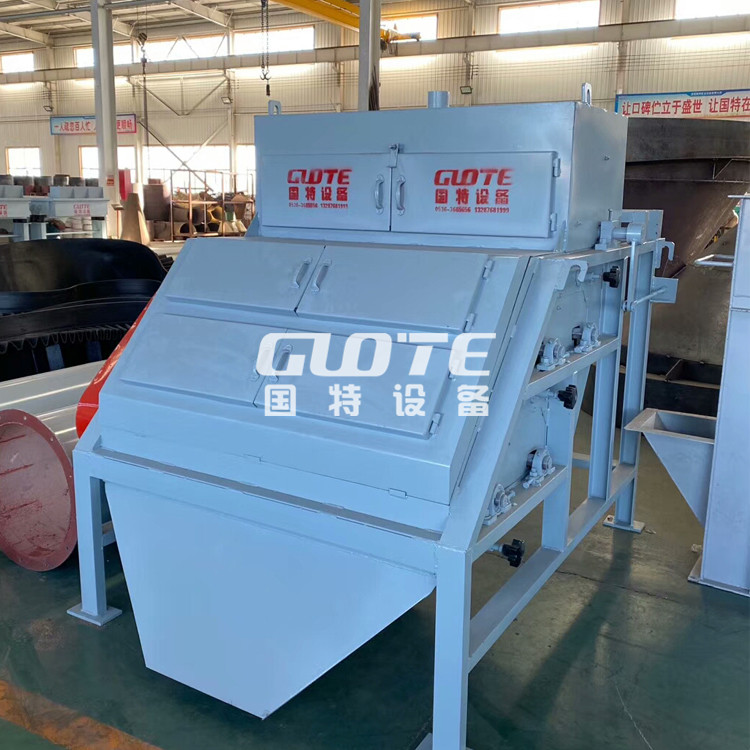

    GTGB Plate Magnetic Separator

    4,500GS-15,000GS Wet Process Permanent
    High Gradient Magnetic Separator For Silica Sand Matched With Grinding Machine Design

    CTB/N/S Drum Magnetic Separator

    1,000-6,500GS Wet Process Permanent Magnetic Type
    High Gradient Magnetic Separator For Silica Sand Matched With Grinding Machine Design

    GDF Magnetic Separator

    10,000-20,000GS Dry Powder Electromagnetic Type
    High Gradient Magnetic Separator For Silica Sand Matched With Grinding Machine Design

    GCT/F Roller Magnetic Separator

    15,000GS Dry Permanent Multi Rollers Type
    High Gradient Magnetic Separator For Silica Sand Matched With Grinding Machine Design

    GTZ Drum Magnetic Pulley

    1,000-7,000GS Dry Permanent Drum Magnetic Pulley

    Packing and shipping
    High Gradient Magnetic Separator For Silica Sand Matched With Grinding Machine Design
    Company Profile
    High Gradient Magnetic Separator For Silica Sand Matched With Grinding Machine Design
    Basic Company Introduction
    Weifang guote mining equipment Co.,Ltd. is located in Qingzhou Economic Development Zone, Weifang City, Shandong Province. It covers an area of 40000 square meters. It is a high-tech enterprise in Shandong Province. The company has passed ISO9001 quality system certification, environmental system certification, safety management system certification, EU CE certification and more than ten useful national invention patents.
    High Gradient Magnetic Separator For Silica Sand Matched With Grinding Machine Design
    About GUOTE
    Guote Mining equipment has long been committed to the production of quartz sand, silicon powder, feldspar and oil field fracturing
    sand special equipment, and provide non-metallic ore production line experiment, design, consulting and the whole line equipment supply;such as：quartz sand making processing line equipment;glass sand making processing line equipment ;quartz powder making machine;sand washing system;drum dryer machine;dewatering screen equipment;vibration screen;scrubber attrition machine;magnetic separator machine...etc...
    High Gradient Magnetic Separator For Silica Sand Matched With Grinding Machine Design
    High Gradient Magnetic Separator For Silica Sand Matched With Grinding Machine Design
    High Gradient Magnetic Separator For Silica Sand Matched With Grinding Machine Design
    High Gradient Magnetic Separator For Silica Sand Matched With Grinding Machine Design
    High Gradient Magnetic Separator For Silica Sand Matched With Grinding Machine Design
    Certifications
    High Gradient Magnetic Separator For Silica Sand Matched With Grinding Machine Design
    High Gradient Magnetic Separator For Silica Sand Matched With Grinding Machine Design
    High Gradient Magnetic Separator For Silica Sand Matched With Grinding Machine Design

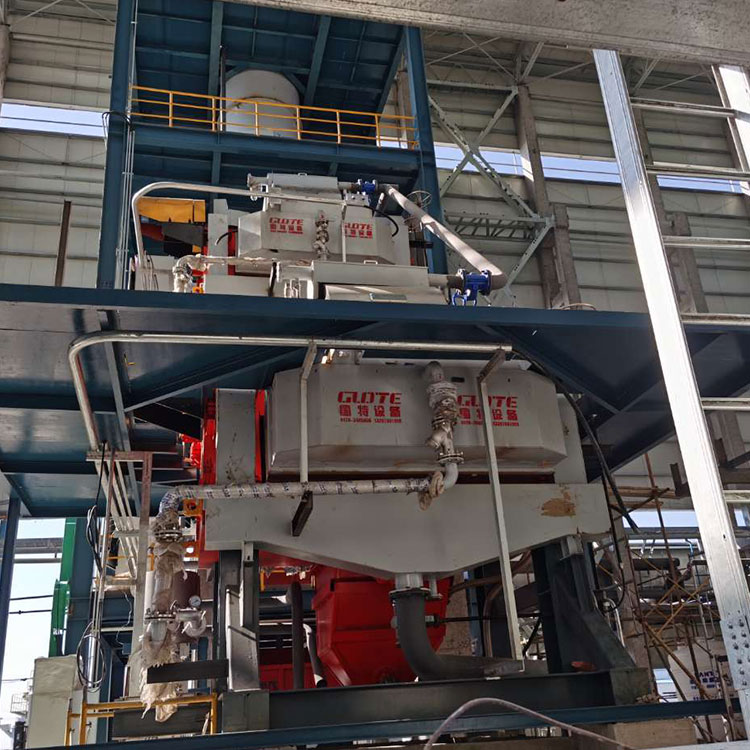

    Customer Photos
    High Gradient Magnetic Separator For Silica Sand Matched With Grinding Machine Design

    About customers：

    Our products are very popular at home and abroad, exported to Japan, South Korea,Thailand, Pakistan, Bangladesh, South Africa, India, Indonesia, Brazil, Vietnam, Malaysia and more than a dozen other countries and regions.
    Contact Information
    Weifang Guote Mining Equipment Co., Ltd.
    Contact: Rika (Sales manager)
    Mobile :+86 156 1023 2233( whatsapp/wechat)
    Add: Dongjing Road East, Industrial Zone,Qingzhou City, Weifang,Shandong Province, P.R.China
    E-mail: rikali@sdguote.com
    Webstie: www.guotegroup.com

    If you have any questions, pls don't hesitate to contact me. We will reply you ASAP.
