    2.2-5.5kw Electromagnetic Dry Powder Iron Separator for Gypsum Powder Product Lines

    Ask Lasest Price
    Brand Name : GUOTE
    Certification : ISO9001:2008
    Supply Ability : 960 Set/Sets per Year
    Price : $7,981.00/sets >=1 sets
    • Product Details
    • Company Profile

    2.2-5.5kw Electromagnetic Dry Powder Iron Separator for Gypsum Powder Product Lines

    Product Overview

    Lithium-manganate dry powder magnetic separator

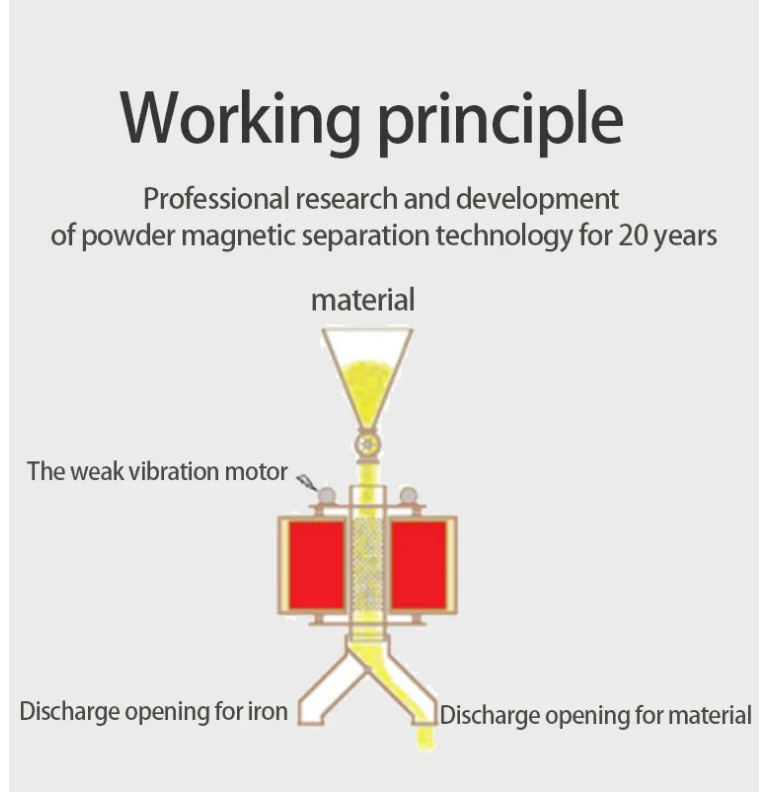

    Electromagnetic Dry Powder Iron Separator /The Iron-Removing Magnetic Separation Equipment in Gypsum Powder Producti Lines / dry lithium ion battery raw materials electrostatic Carbon magnetic separation working principle electromagnetic separator / Lithium cobalt acid material magnetic separator /Feldspar Lithium Battery Quartz Sand Magnetic Drum Separator
    Product Introduction:
    GDF series electromagnetic dry powder magnetic separator used for Removal of feeble magnetic oxides in non-metallic mineral
    materials such as ceramics, glass, refractories, etc. It can also be used in pharmaceutical, chemical, food and other industries
    for material purification.There are two outlet at the bottom of the equipment : iron outlet and materials outlet Each equipment
    all equipped an electro control cabinet.

    2.2-5.5kw Electromagnetic Dry Powder Iron Separator for Gypsum Powder Product Lines
    FEATURES AT A GLANCE
    01 -
    magnetic field intensity
    18000-20000GS Linear adjustable Magnetic field

    2.2-5.5kw Electromagnetic Dry Powder Iron Separator for Gypsum Powder Product Lines
    02-
    Cellular conductive media

    smooth material passing magnetic cavity is in a vibrating state
    2.2-5.5kw Electromagnetic Dry Powder Iron Separator for Gypsum Powder Product Lines
    03-
    Fully automatic type PLC intelligent control

    The control system adopts a programmable controller as the core control component, which can effectively control each actuator to operate according to the process requirements cycle
    2.2-5.5kw Electromagnetic Dry Powder Iron Separator for Gypsum Powder Product Lines
    04-
    Oil circulating water cooling method

    Temperature control device Real-time temperature detection and Automatic control function
    2.2-5.5kw Electromagnetic Dry Powder Iron Separator for Gypsum Powder Product Lines
    2.2-5.5kw Electromagnetic Dry Powder Iron Separator for Gypsum Powder Product Lines
    2.2-5.5kw Electromagnetic Dry Powder Iron Separator for Gypsum Powder Product Lines
    Right elevation
    2.2-5.5kw Electromagnetic Dry Powder Iron Separator for Gypsum Powder Product Lines
    Left elevation
    2.2-5.5kw Electromagnetic Dry Powder Iron Separator for Gypsum Powder Product Lines
    Front elevation
    PRODUCT SPECIFICATIONS
    No
    Model
    Magnetic Field
    Intensity(GS)
    Maximum
    Processing
    Capacity(T/H)
    Mininum
    Matrial Size(um)
    Filter Net
    Outer Diameter
    Height
    1
    GDF-150
    18000
    0.8-1.5
    50
    150
    1000
    2
    GDF-280
    18000
    2-4
    50
    280
    1208
    3
    GDF-350
    18000
    3-6
    50
    350
    1380
    4
    GDF-150H
    22000
    0.8-1.5
    50
    150
    1000
    5
    GDF-280H
    22000
    2-4
    50
    280
    1208
    6
    GDF-350H
    22000
    3-6
    50
    350
    1380
    2.2-5.5kw Electromagnetic Dry Powder Iron Separator for Gypsum Powder Product Lines
    2.2-5.5kw Electromagnetic Dry Powder Iron Separator for Gypsum Powder Product Lines
    Application area
    1.Lithium anode and cathode materials
    2.Photovoltaic raw material
    3. Electronic semiconductor aerospace raw materials
    4. Glass raw material
    5.High Grade Ceramic Building materials
    6.Crucible Raw material
    7.Abrasives
    8.Chemicals
    9.Refractory materials

    SALES AND SERVICE NETWORK
    2.2-5.5kw Electromagnetic Dry Powder Iron Separator for Gypsum Powder Product Lines
    Successful Project
    2.2-5.5kw Electromagnetic Dry Powder Iron Separator for Gypsum Powder Product Lines
    Project in Thailand
    2.2-5.5kw Electromagnetic Dry Powder Iron Separator for Gypsum Powder Product Lines
    Project in India
    2.2-5.5kw Electromagnetic Dry Powder Iron Separator for Gypsum Powder Product Lines
    Project in Russia
    SIMILAR PRODUCTS
    2.2-5.5kw Electromagnetic Dry Powder Iron Separator for Gypsum Powder Product Lines
    2.2-5.5kw Electromagnetic Dry Powder Iron Separator for Gypsum Powder Product Lines
    2.2-5.5kw Electromagnetic Dry Powder Iron Separator for Gypsum Powder Product Lines
    2.2-5.5kw Electromagnetic Dry Powder Iron Separator for Gypsum Powder Product Lines
    FAQ

    Technical features:

    1.Wipe off fine materials that are not easy to circulate: under the effect of the vibration motor, the material, which is ≥ 200mm
    or with high humidity, can go throng the screen mesh.
    2.Processing the material with high temperature: the standard model can processing material with up to 70 centigrade and the
    special model can process the material with higher temperature.
    3. Easy installation: you can install the equipment in any way, as long as the frame is safe and stable.
    4.Cleaning the magnetic filtering net easily: laying a plate at the discharging pole, and at the same time, turn off the power to
    erase the magnetism for the cleaning operation.
    5. Separating the iron pollution and the material totally: the material definitely has no way to go into the separating chamber.
    6.Simple connection : during operation ,the host vibration . The input and output of raw materials can be connected by external
    pipes or canvas bags .
    2.2-5.5kw Electromagnetic Dry Powder Iron Separator for Gypsum Powder Product Lines
    2.2-5.5kw Electromagnetic Dry Powder Iron Separator for Gypsum Powder Product Lines

    Our service

    1.EPC service for single equipment and whole production line.
    2.OEM service for your personal equipment or production line
    3.Testing before delivery and Pretesting in working site until get qualified products
    4.24hours for technical Operation Guide and 4hours offer technical proposal for problem shooting.
    Q: Why we believe in Weifang GuoteMining Equipment Company?
    A: 1. More than 10 years experience.

    Q. We are the leading professional supplier of mining equipments and service for quartz mining equipment industry.
    A. All products achieved ISO9001:2000 quality management certificate and EU CE certificate.

    Q: Delivery time
    A: The lead time is 10-30 days, delivery time will vary depending on the type of the machine, shipping method selected and part availability.

    Q: Payment terms
    A: Accepted Payment Type: T/T, L/C, Western Union, Cash.
    After sign the contract, pay the 30% deposit of total purchase price and pay the full payment before delivery.

    Q: What will you do if the machine is broken down?
    A: The Products warranty is one year. We will provide the technical advice and find the solution immediately for you when the machine is in trouble. For those wear parts, we guarantee the high quality parts for long-term supply.

    Q: What should I do if I want to get a best quotation?
    A: If you want a suitable type for you, please let us know your material and capacity.
