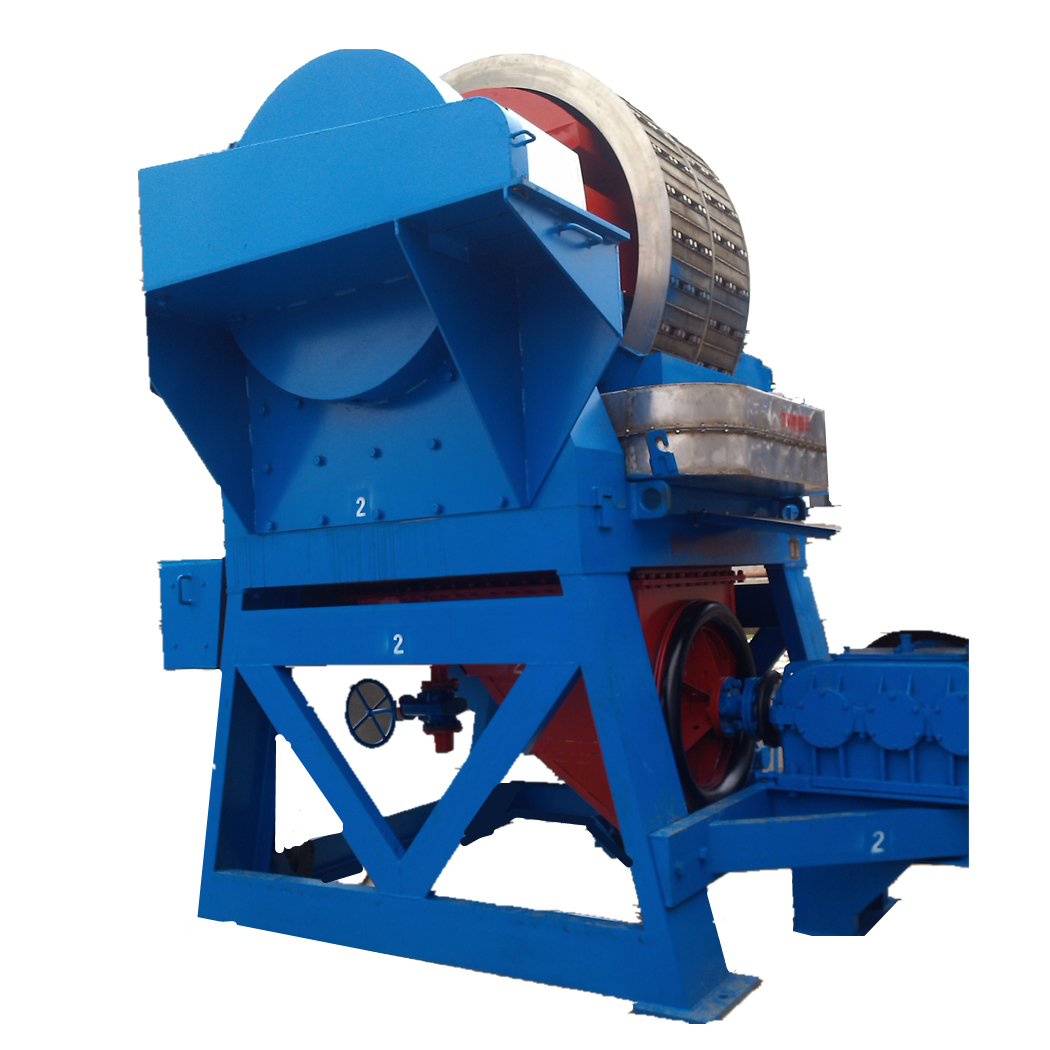

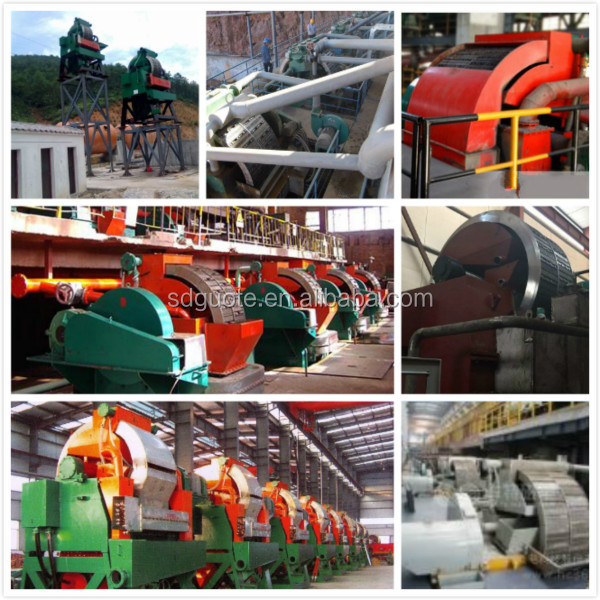

GTLH Series high gradient magnetic separator is a new product developed
independently by GUOTE. It combines the characteristics of international advanced high
intensity magnetic separators, which is so far the high intensity
magnetic separator of best performance and most advanced
technology. This product utilizes vertical ring rotation, pulsating
beneficiation and high frequency vibrator, and it has no magnetic
medium jam problem in flat ring high intensity magnetic separator
and flat ring high gradient magnetic separator.
It has the advantages of large beneficiation ratio, high security
and convenient operation etc. This product realizes both high
beneficiation ratio and high recycle ratio in separating weak
magnetic minerals.
Specifications of cement vibrating feeder
Model Part | DLS-50 | DLS-75 | DLS-100 | DLS-125 | DLS-150 | DLS-175 | DLS-200 | DLS-250 |
Ring diameter (mm) | 500 | 750 | 1000 | 1250 | 1500 | 1750 | 2000 | 2500 |
Particles size mm (-200 mesh) | -1.0(30-100) | -1.0(30-100) | -1.3(30~100) | -1.3(30~100) | -1.3(30~100) | -1.3(30~100) | -1.3(30~100) | -1.3(30~100) |
Slurry density (%) | 10~40 | 10~40 | 10~40 | 10~40 | 10~40 | 10~40 | 10~40 | 10~40 |
Slurry throughput (m3/h) | 0.5~1.0 | 1.0~2.0 | 12.5~20 | 20~50 | 50~100 | 75~150 | 100~200 | 180~450 |
Handling capacity (t/h) | 0.05~0.25 | 0.1~0.5 | 4~7 | 10~18 | 20~30 | 30~50 | 50~80 | 80~150 |
Rated back ground Field intensity (T) | 0~1.1 | 0~1.1 | 0~1.1 | 0~1.1 | 0~1.1 | 0~1.1 | 0~1.1 | 0~1.1 |
Energizing current (A) | 0~1200 | 0~850 | 0~650 | 0~850 | 0~950 | 0~1200 | 0~1200 | 0~1400 |
Energizing voltage (V) | 0~8.3 | 0~13 | 0~26.5 | 0~23 | 0~28 | 0~31 | 0~35 | 0~45 |
Energizing power (KW) | 0~10 | 0~11 | 0~17 | 0~19 | 0~27 | 0~37 | 0~43 | 0~63 |
Ring motor power (KW) | 0.37 | 0.55 | 1.5 | 2.2 | 4 | 4 | 5.5 | 11 |
Vibration motor power (KW) | 0.55 | 0.75 | 2.2 | 2.2 | 4 | 4 | 7.5 | 11 |
Water supply pressure (MPa) | 0.1~0.2 | 0.1~0.2 | 0.2~0.4 | 0.15~0.3 | 0.2~0.4 | 0.2~0.4 | 0.2~0.4 | 0.2~0.4 |
Water consumption (m3/h) | 0.75~1.5 | 5~8 | 10~20 | 30~45 | 60~90 | 80~120 | 100~150 | 200~300 |
Cooling water (m3/h) | 1.5~2 | 1.5~2 | 2~2.5 | 2.5~3 | 3~4 | 4~5 | 5~6 | 6~7 |
Main frame weight (t) | 1.5 | 3 | 6 | 14 | 20 | 32 | 48 | 105 |
Overall dimension(mm) | 1900*1580 *1320 | 2000*1360 *1680 | 2700*2200 *2560 | 3045*2320 *2640 | 3400*3060 *3150 | 3900*3400 *3800 | 4290*3610 *4320 | 5800*5000 *5400 |
Features
l Application field
1. Updating Ferrous Metals: Martite, Hematite, Siderite, Chromite,
Ilmenite, Manganese, Etc.
2. Separating Non-Ferrous Metals: Wolframite and Quartz, Pyrrhotite
and Cassiterite, Wolframite and Cassiterite, Limonite Purifying,
Scheelite, Wolframite and Garnet, Etc.
3. Recovering Rare Earth: Tantalum and Niobium, Lepidomelane,
Monazite, Etc.
4. Brightening Non Metals: Quartz, Feldspar And Kaolin for
Ceramics, Sillimanite, Cassiterite, Andalusite, Kyanite for
Refractory, and Separating Impurities From Hornblende, Mica,
Tourmaline, Garnet, Etc,
l Technical features
1. Vertical Ring Rotation & Pulsating Beneficiation
2. High Frequency Vibration Mechanism
3. Wide Range of Feed Particle Size
4. Multi-Gradient Matrixes & Liquid Level Control System.
These technologies improve the grade of magnetic concentrate and
recovery.
5. Frequency Conversion Step-less Adjustment for Rotary Speed &
Vibrating Frequency.
6. No Stepper Phenomenon of Rotary Rings
