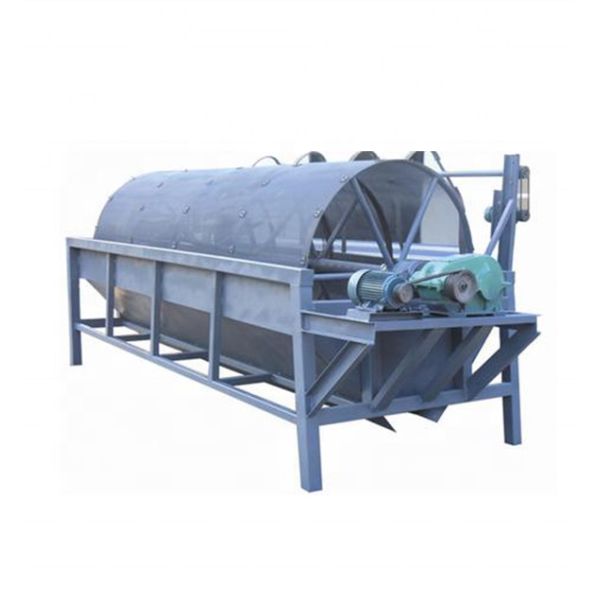

Trommel screen is also named drum screen, whic is consist of four parts: drum, undersize hopper, support
base, drive device.
When material feed into the drum, under the influence of large
centrifugal force, material will make a sprial movement along with
drum surface. Meanwhile, oversize materials was removed out of
discharge outlet; qualified materials(different sizes) be collected
in undersize hoppers. Then sent to be the next system by belt
conveyor or other.
Trommels are designed for high performance screening,
classification and grading application. With over 50 years
experience of it, our trommel screen has the following features:
- Good performance, highest production rates, lowest input costs and
long service life.
- Capacity range of 7.5-1500 m3/hour of slurry, or 6-600 tons/hour of
solids, per single trommel.
- Speical design of screen makes it more durable than a common one.
- Heavy duty jacking and adjustable stands, assist in rapid set up &
assembly time.
- High pressure spray bar network around the hopper and through out
the length of the trommel.
- Heavy duty roller supports (steel or rubber) wheels.
- Portable mobile or stationary configuration.
There are four types trommel screen in our company: 1. enclosed
type; 2. open type; 3. heavy-duty type; 4. light-duty type
1) Quarry: gravel, clay, mountain meal, sand, etc.
2) Coal Industry: lump coal, coal dust, coal washing, etc.
3) Cold Mine: gold screening and washing
4) Chemical Industry: sifting calcium oxide, compost
5) Metallurgy, construction, mineral-selecting, etc.
6) Recycling Industy: solid waste, scrap tires, plastic, etc.
| Model | Capacity
| Power
| Screen Diameter
| Screen Length
| Discharge Size
| Input Size
| Dimension (L*W*H)
| Weight
|
| t/h | kw | mm | mm | mm | mm | mm | kg |
| GT-1015 | 50 | 3 | 1000 | 1500 | 0-100 | ≤300 | 2600*1400*1700 | 2200 |
GT-1020 | 100
| 4
| 1000
| 2000
| 0-100 | ≤300 | 3390*1400*2150
| 2800
|
GT-1225 | 160
| 5.5
| 1200
| 2500
| 0-100 | ≤300 | 4145*1500*2690
| 4200
|
GT-1530 | 250 | 7.5 | 1500 | 3000 | 0-100 | ≤300 | 4460*1900*2820 | 5100 |
GT-1545 | 350 | 11 | 1500 | 4500 | 0-100 | ≤400 | 5960*1900*3080 | 6000 |
GT-1848 | 450 | 15 | 1800 | 4800 | 0-100 | ≤400 | 6500*2350*4000 | 7500 |
GT2055 | 600 | 22 | 2000 | 5500 | 0-100 | ≤400 | 7500*2560*4800 | 9600 |
Double-deck screen mesh,reduced wear and prolong the service life
Our Services
1. During the installation and commissioning, we shall send our
technician to the site for guiding the installation and
commissioning.
2. During the installation and commissioning, we offer training
service
3. The quality assurance date is one year after commissioning.
4. If the equipments appear the equipment failure because of
improper handling of user, we are in charge of maintenance, and
collect the appropriate cost.
5. We offer the components with favorable price, perdurable
maintenance. After quality assurance date, if the equipments need
to be repaired, we only collect the cost price.
